Shandong E-Valley Intelligent Manufacturing Co., Ltd.

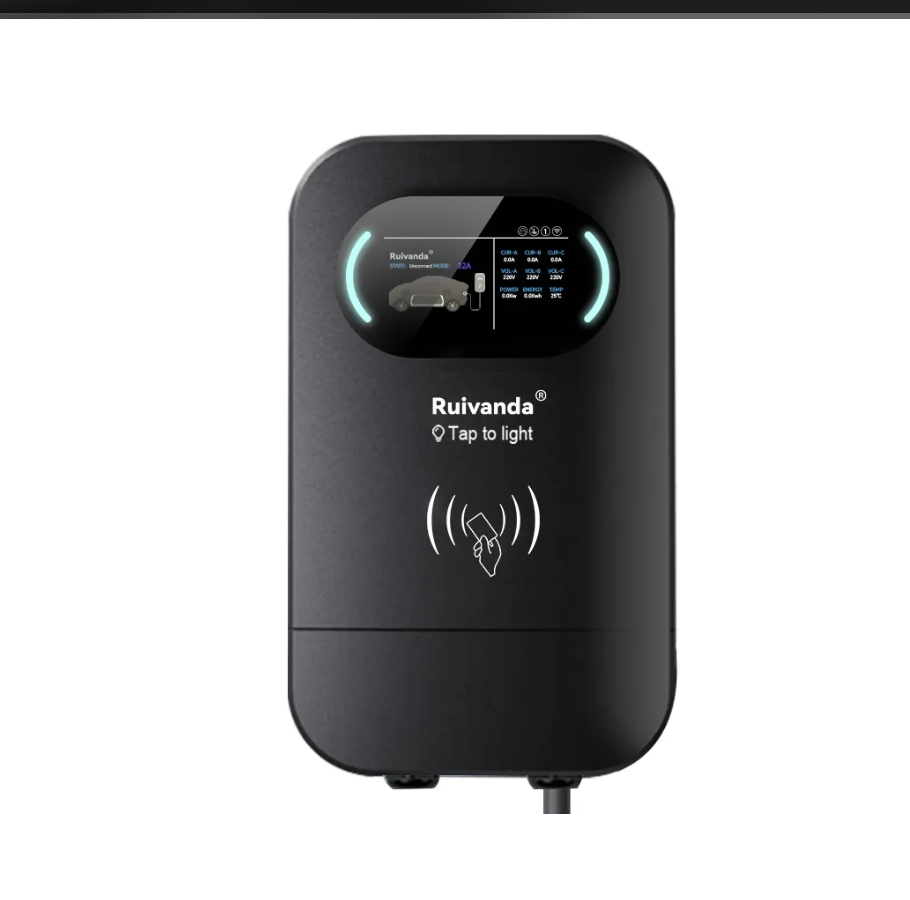

PEV-01 AC EV WALLBOX
Product Description
Waterproof
Waterproof level lP65
You can use the item outdoors and do not have to worry even on rainy days. The shell is made of PC fireproof plastic, Light but robust, Soit will not be easily damaged.
Temperature Control Protection
Automatic power cut over 80℃
Ruivanda always puts charging safety first, and monitors the charging temperature in real time.
Different Way to Charge
Support use the RFID card to scan charging, support use charging connector , Webpage Control, and remote control.
Technical Features
| Technical Features-EN IEC 61851-1:2019/SAEJ1772/GB/T | |||
| Model | PEV-01 | ||
| Size | 400*242*105mm(L*W*H) | ||
| Standard | European Standard | American Standard | Chinese Standard |
| Input/Output Voltage | 100~240/400VAC 50/60Hz 1/3Phase | 100~240VAC 50/60Hz 1Phase | 100~240/400VAC 50/60Hz 1/3Phase |
| Output Current | 8A/10A/13A 16A/22A/32A | 8A/10A/13A/16A 22A/32A/40A/48A | 8A/10A/13A 16A/22A/32A |
| Max Power | 7kW/11KW/22KW | 7kW/9.6KW/11.5KW | 7kW/11KW/22KW |
| Cable Length | 5m or more lengths are Customizable | ||
| Standby Power | <3W | ||
| Communication | Wi-Fi 802.11b/g/[email protected] | ||
| User Interface | LED(RGB)/LCD(4.3inch/5inch)/RFID(mifare ISO&IEC 14443A) | ||
| Protool | OCPP1.6J(option) | ||
| Standards | EN IEC 61851-1: 2019/SAE J1772/GB/T 18487-2015 | ||
| Charging Interface | IEC 62196 Type 2/SAE J1772 Type 1/GB/GB/T 20234.2 | ||
| IP Degree | IP65 | ||
| Operating Temperature | -25~+50℃ | ||
| Humidity | Max.95%(non-regulating) | ||
| Protection | Overvoltage Protection, Undervoltage Protection, Overcurrent Protection, Residual Current Protection, Overtemperature Protection, CP Protection, Flame retardant protection. | ||
| Note | Charging Interface can be changed according to customer needs | ||
