New Fully Liquid-Cooled Super EV Charging Station
Product name : New Fully Liquid-Cooled Super EV Charging Station
Model No. : 23122102
Price : 4600$/set-5200$/set
Products Category: > EVs Charging pile
New Fully Liquid-Cooled Super EV Charging Station

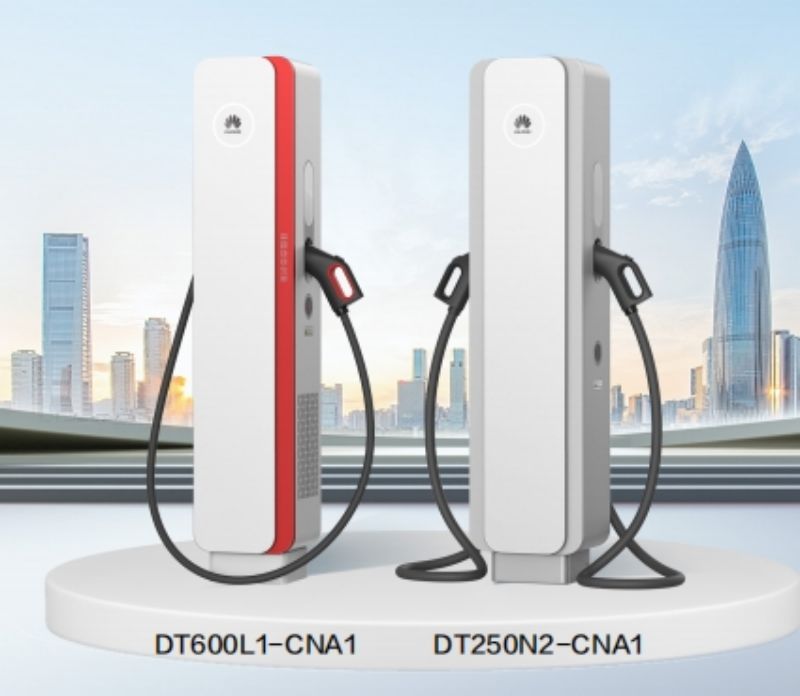

Basic information | Product model | DT600L1-CNA1 | DT250N2-CNA1 |
Dimensions (width * depth * height) | 340 * 295 * 1700 | 390 * 295 * 1700 | |
Number of charging guns | 1 | 2 | |
Gun thread length | 3.5m | 5m | |
Installation method | Floor mounted | Floor mounted | |
Protection level | IP55 | IP55 | |
Heat dissipation method | Liquid cooling | Natural cooling | |
Environmental requirements | working temperature | -35~+50 ℃ | -35~+50 ℃ |
Noise level | ≤ 55dB@25 ℃ | ≤ 50dB@25 ℃ | |
Storage temperature | -35 ℃~+70 ℃ | -35 ℃~+70 ℃ | |
relative humidity | 5% RH~95% RH | 5% RH~95% RH | |
Altitude | ≤ 4000m | ≤ 4000m | |
output characteristic | output voltage | 200-1000Vdc | 200-1000Vdc |
Charging current | ≤ 600A | ≤ 250A | |
Product specifications | GB/T27930-2015, JJG1149-2022 | GB/T18487.1-2015, NB/T33001-2018, NB/T33008.1-2018, GB/T27930-2015, JJG1149-2022 | |
Safety functions | Output overvoltage protection, short circuit protection, protective grounding continuity detection, over temperature protection, emergency stop protection, leakage protection, insulation detection, door opening protection, power outage protection, battery reverse connection protection, contactor adhesion protection, low liquid level alarm |
1. Ultimate experience: fast charging, low noise. Maximum about 600kW, noise <55dB. It can be recharged regardless of the model, and the success rate of one charge is about 99%+. The gun line is light and easy to operate. The liquid gun line is about 9KG, which is 50% lighter than the industry.
2. Extremely high quality: long life and maintenance-free. Up to 15 years + service life. Intelligent operation and maintenance, less labor. Full online operation and maintenance, "0" maintenance. No leakage of liquid or electricity. With plate and liquid transportation, water and electricity isolation design.
3. Excellent benefits: more charging and fast turnover. The charging turnover rate is doubled. High efficiency and low energy consumption. E2E efficiency is about 95.5%. Easy to expand, integrating optical and storage. Continuous evolution, no need to change mains power.

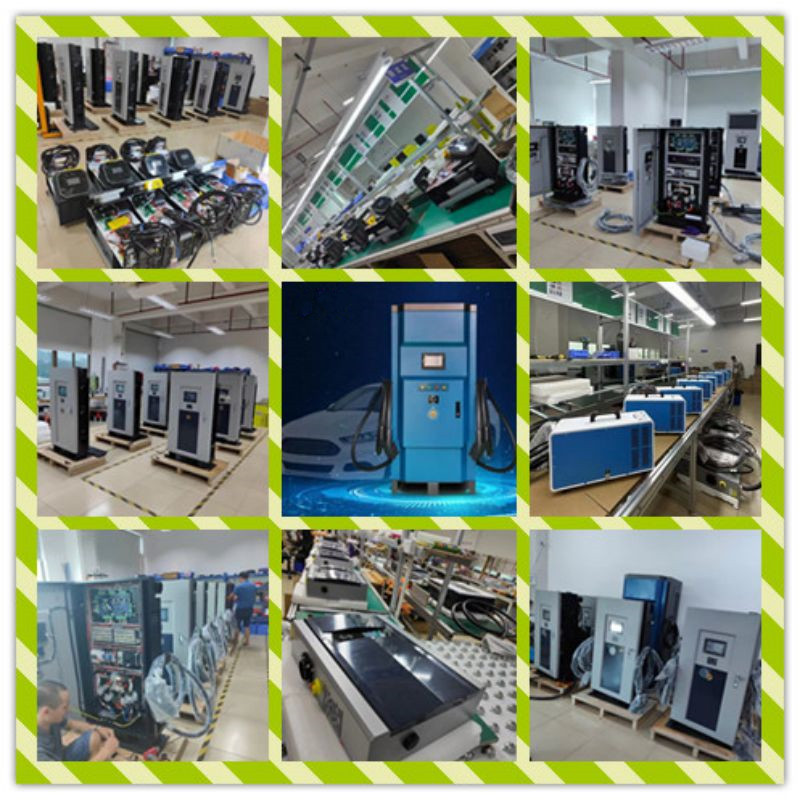

Our charging piles support customization
Standard export packaging display
Company Profile
Shandong E-Valley Intelligent Manufacturing Co., Ltd. is located opposite the south gate of Xiangkai Logistics Park, Xiajin County Economic Development Zone, Dezhou City, Shandong Province. It is a subsidiary of Shandong Xutong Group, which is a company integrating logistics, transportation, gas stations, and automobiles. A full-service enterprise that integrates repair shops, logistics parks, supermarkets, motor vehicle testing, motor vehicle driver training, automobile sales and other industries, Xutong Group is a sincere, pragmatic and innovative service that "emphasis on quality, integrity and the most assured".
E-Valley is an Internet of Things high-tech enterprise integrating R&D, production and marketing of smart charging piles. It deeply integrates traditional charging piles with key technologies such as electronic automation, big data, cloud computing, blockchain, and 5G. Establish a Shandong digital energy supply chain cloud platform to provide customers with industry-leading one-stop solutions for intelligent charging systems, and provide government agencies with big data access and cloud platform development services. E-Valley will continue to explore the innovative integration of digital technology and energy technology, deeply explore user needs, and establish a comprehensive service platform for new energy industry commerce, finance, insurance, etc., to assist the digital upgrading and development of the industry.
FAQ
A. How to place an order.
1. Contact customer service to confirm details such as freight and product model,Configuration, quantity, etc. (you can also arrange freight forwarding by yourself).
2. We provide you with a Proforma Invoice with all product details based on your final decision.
3. Usually you need to arrange 30% payment to our bank account, then we will prepare the products.The cycle is generally about 10-15 days, and the specific delivery can be determined according to your order quantity.
4. After the product is completed, pay the balance, and we will arrange the freight forwarder to deliver the goods (or we will provide relevant information and arrange the freight forwarder transportation by ourselves).
5. After completing this process, the customer service will track the location of the product and notify you when it is approaching and arriving, so that you can quickly prepare for customs clearance and other related matters.
6. After receiving the item, there will be a dedicated after-sales team waiting for your follow-up feedback.
B. Why choose us?
1. We can provide consistent, high-quality products.
2. We can provide high-quality and fast customer service If you have any other questions, please feel free to contact us.
3. Our competitive and reliable product prices.
C. What is your minimum order quantity?
1 unit, however, we offer better discounts for large orders.
