2024 latest 600kW-720kW fully liquid-cooled super charging
Product name : 2024 latest 600kW-720kW fully liquid-cooled super charging
Model No. : 24010201
Price : 7700$/set-8500$/set
Products Category: > EVs Charging pile
![Send Inquiry](/images/send_inquiry_en.gif)
2024 latest 600kW-720kW fully liquid-cooled super charging

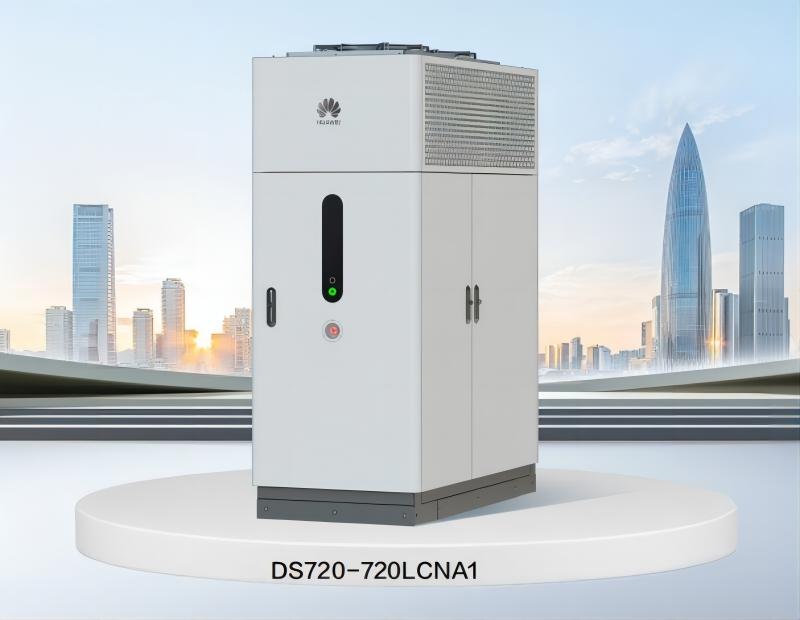

Basic Information | Product number | DS720-720LCNA1 | |
Product configuration | ACDC600kW-DCDC720kW | ACDC480kW-DCDC600kW | |
Output Power | 600kW | 480kW | |
Maximum number of shots | 12 | 8 | |
Dimensions (width*depth*height) | 800mm×1700mm×2150mm | ||
Installation method | Floor installation (supports transportation with plate and liquid) | ||
System efficiency | Maximum efficiency 95.5% | ||
Heat dissipation method | liquid cooling | ||
Protection level | IP55 | ||
Communication Interface | 4G, FE (northbound) | ||
Power evolution capability | Capacity expansion supports up to 720kW | ||
Input properties | Input voltage | 380Vac±15%, three-phase five-wire system | |
input frequency | 45Hz~66Hz | ||
power factor | ≥0.99(load≥50%) | ||
harmonic | ≤5%(load≥50%) | ||
Input power distribution | AC 800A×3P circuit breaker; single transformer with 2 incoming lines (360KW per channel) | ||
Output characteristics | The output voltage | 200-1000Vdc | |
Steady flow accuracy | ≤±1% | ||
Voltage stabilization accuracy | ≤±0.5% | ||
Environmental indicators | Operating temperature | -35℃~+50℃ | |
storage temperature | -35℃~+70℃ | ||
Altitude | ≤4000m | ||
Relative humidity | 5%RH~95%RH | ||
Noise level | ≤55dB@25℃(silent mode), ≤65dB@25℃(standard mode) | ||
security function | Input overvoltage protection, undervoltage protection, output overvoltage protection, constant power overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection, insulation detection, door opening protection, battery reverse connection protection , relay adhesion protection, water immersion protection, smoke alarm | ||
product specifications | GB/T18487.1-2015, NB/T33001-2018, NB/T33008.1-2018 | ||
Host terminal communication interface | FE, recommended ring network, shielded twisted pair FTP Cat5E | ||
Host terminal communication protocol | GOOSE+MODBUS-TCP | ||
Auxiliary source power supply standard | Host 220Vac auxiliary power supply output |
Advantages:
1. Ultimate experience: fast charging, low noise. Capacity expansion supports a maximum of 720kW, and noise is <55dB. No matter what model it is, it can be charged, and the success rate of one charge is about 99%+. The gun line is lightweight and easy to operate. The weight of the liquid gun line is about 9KG, which is 50% lighter than the industry.
2. Extremely high quality: long life and maintenance-free. Up to 15+ years of service life. Intelligent operation and maintenance reduces labor. Full online operation and maintenance, "0" maintenance. No fluid or electrical leakage. It has plate liquid transportation and water and electricity isolation design.
3. Excellent benefits: more charging and fast turnover. Charging turnover rate doubled. High efficiency and low energy consumption. End-to-end efficiency is approximately 95.5%. Easy to expand, optical storage integration. Continuously evolves without changing mains power.

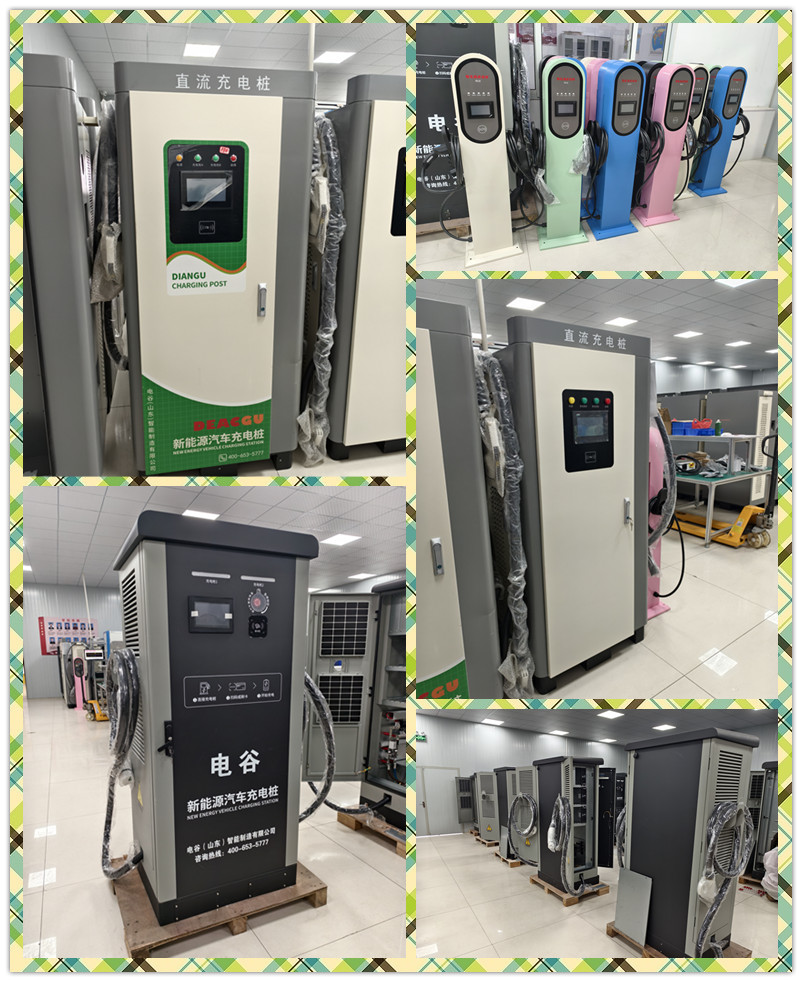

Our charging piles support customization
Standard export packaging display
Company Profile
Shandong E-Valley Intelligent Manufacturing Co., Ltd. is located opposite the south gate of Xiangkai Logistics Park, Xiajin County Economic Development Zone, Dezhou City, Shandong Province. It is a subsidiary of Shandong Xutong Group, which is a company integrating logistics, transportation, gas stations, and automobiles. A full-service enterprise that integrates repair shops, logistics parks, supermarkets, motor vehicle testing, motor vehicle driver training, automobile sales and other industries, Xutong Group is a sincere, pragmatic and innovative service that "emphasis on quality, integrity and the most assured".
E-Valley is an Internet of Things high-tech enterprise integrating R&D, production and marketing of smart charging piles. It deeply integrates traditional charging piles with key technologies such as electronic automation, big data, cloud computing, blockchain, and 5G. Establish a Shandong digital energy supply chain cloud platform to provide customers with industry-leading one-stop solutions for intelligent charging systems, and provide government agencies with big data access and cloud platform development services. E-Valley will continue to explore the innovative integration of digital technology and energy technology, deeply explore user needs, and establish a comprehensive service platform for new energy industry commerce, finance, insurance, etc., to assist the digital upgrading and development of the industry.
FAQ
A. How to place an order.
1. Contact customer service to confirm details such as freight and product model,Configuration, quantity, etc. (you can also arrange freight forwarding by yourself).
2. We provide you with a Proforma Invoice with all product details based on your final decision.
3. Usually you need to arrange 30% payment to our bank account, then we will prepare the products.The cycle is generally about 10-15 days, and the specific delivery can be determined according to your order quantity.
4. After the product is completed, pay the balance, and we will arrange the freight forwarder to deliver the goods (or we will provide relevant information and arrange the freight forwarder transportation by ourselves).
5. After completing this process, the customer service will track the location of the product and notify you when it is approaching and arriving, so that you can quickly prepare for customs clearance and other related matters.
6. After receiving the item, there will be a dedicated after-sales team waiting for your follow-up feedback.
B. Why choose us?
1. We can provide consistent, high-quality products.
2. We can provide high-quality and fast customer service If you have any other questions, please feel free to contact us.
3. Our competitive and reliable product prices.
C. What is your minimum order quantity?
1 unit, however, we offer better discounts for large orders.
