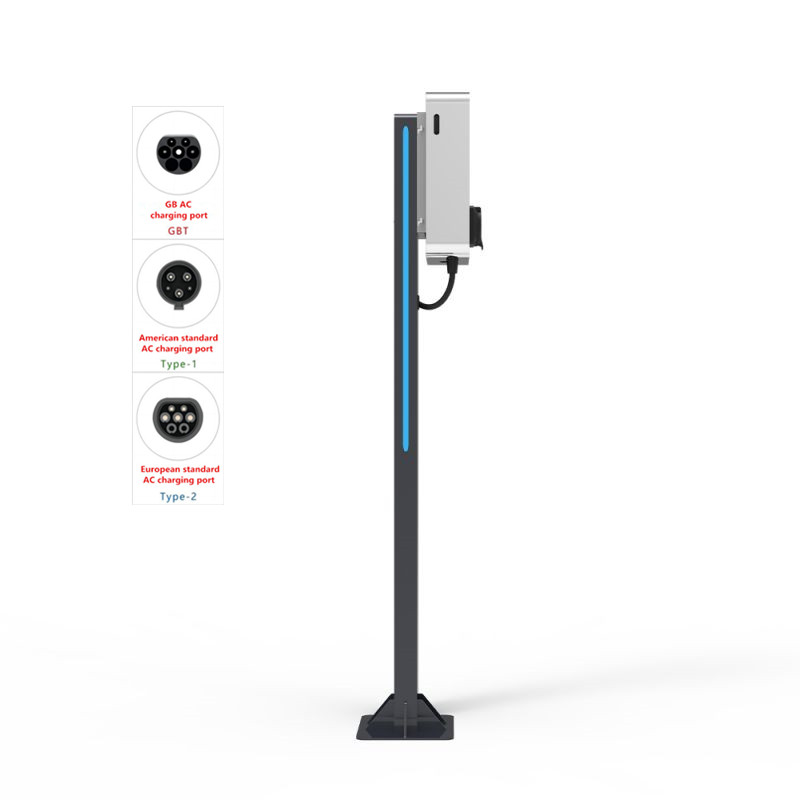

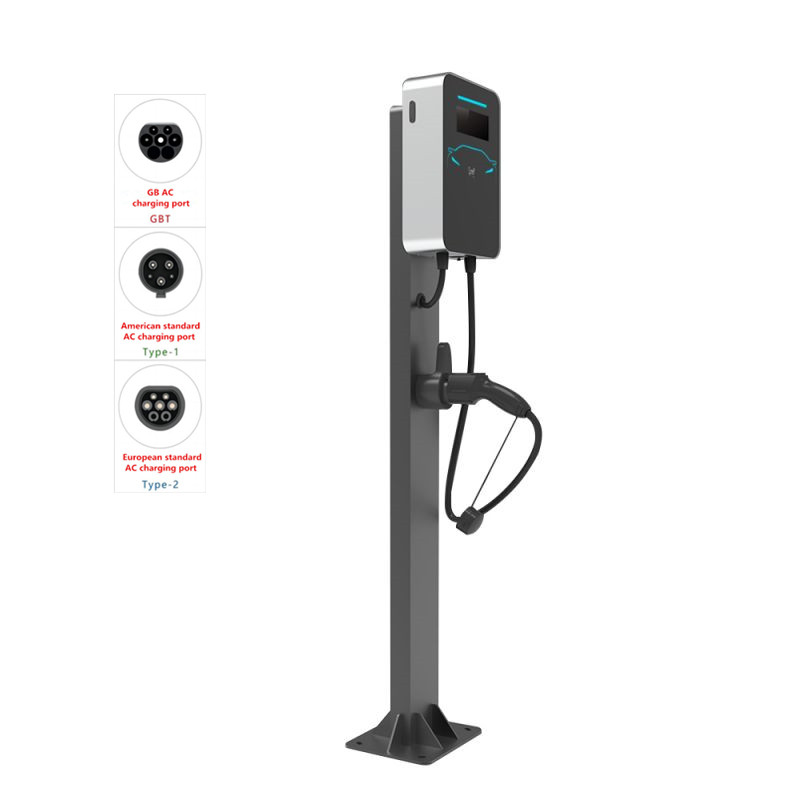

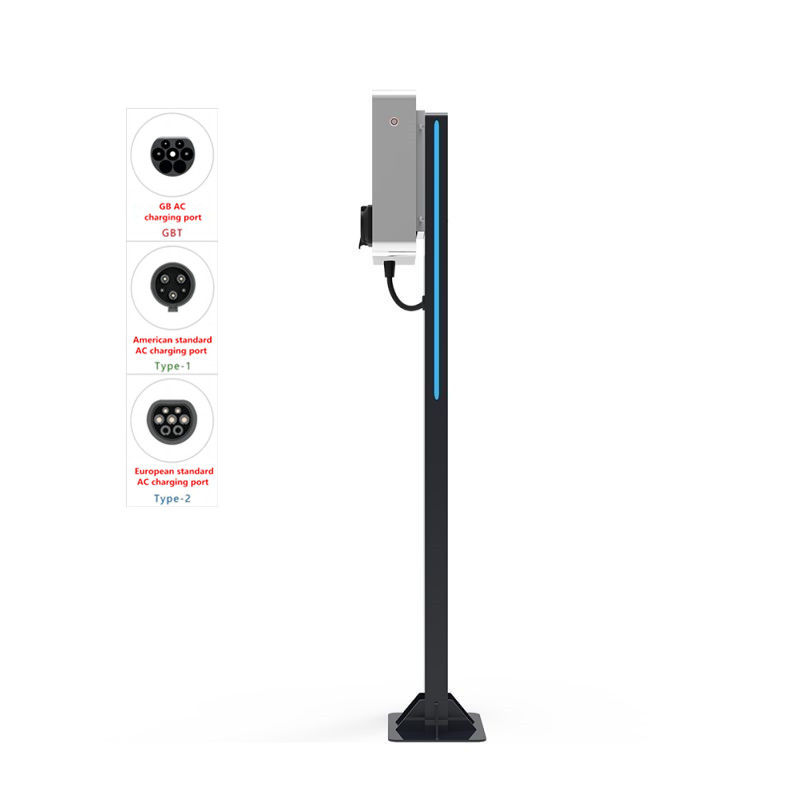

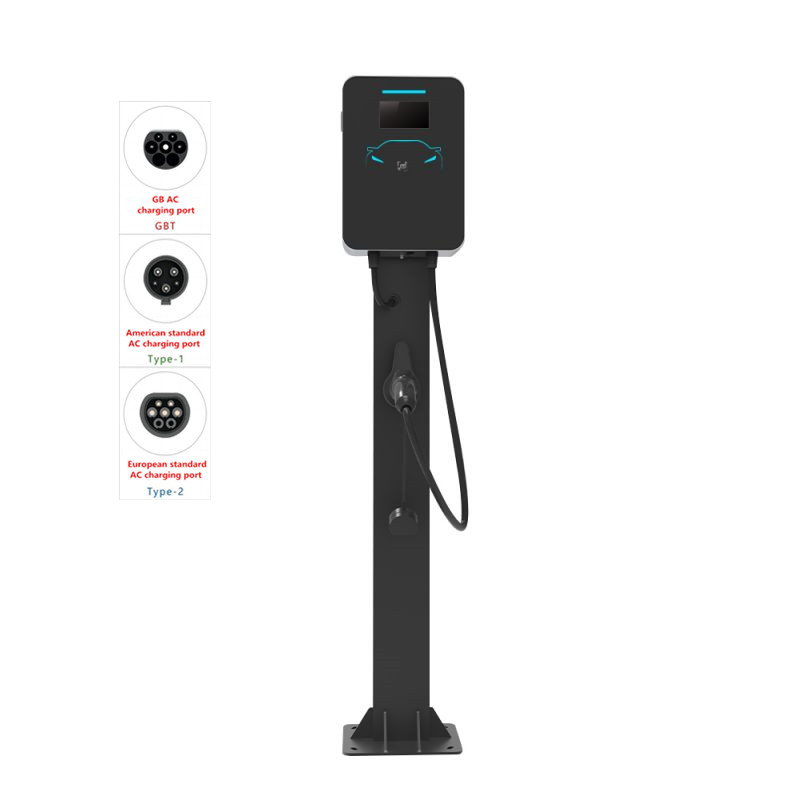

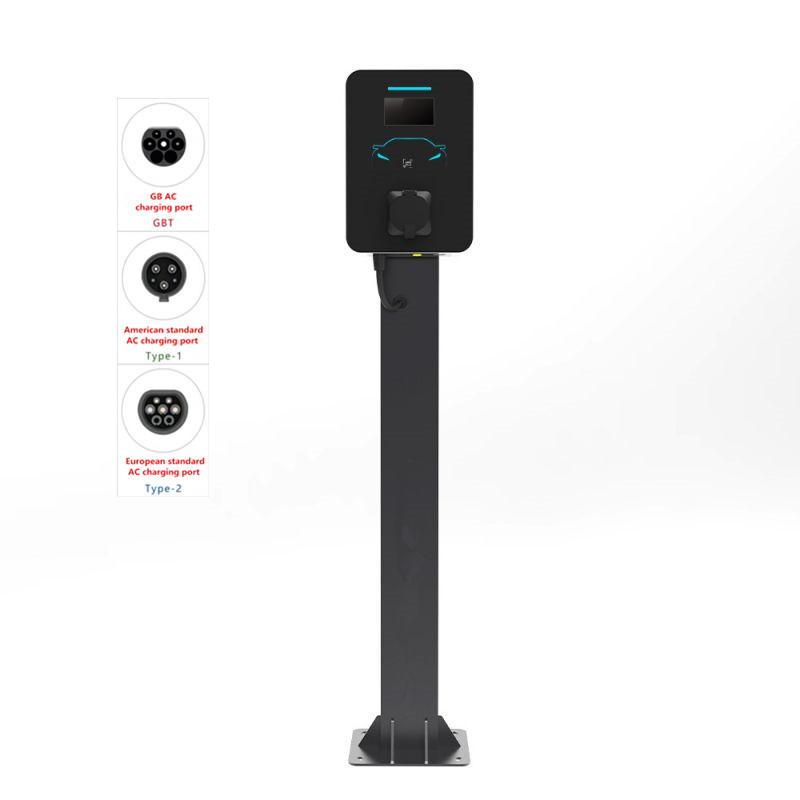

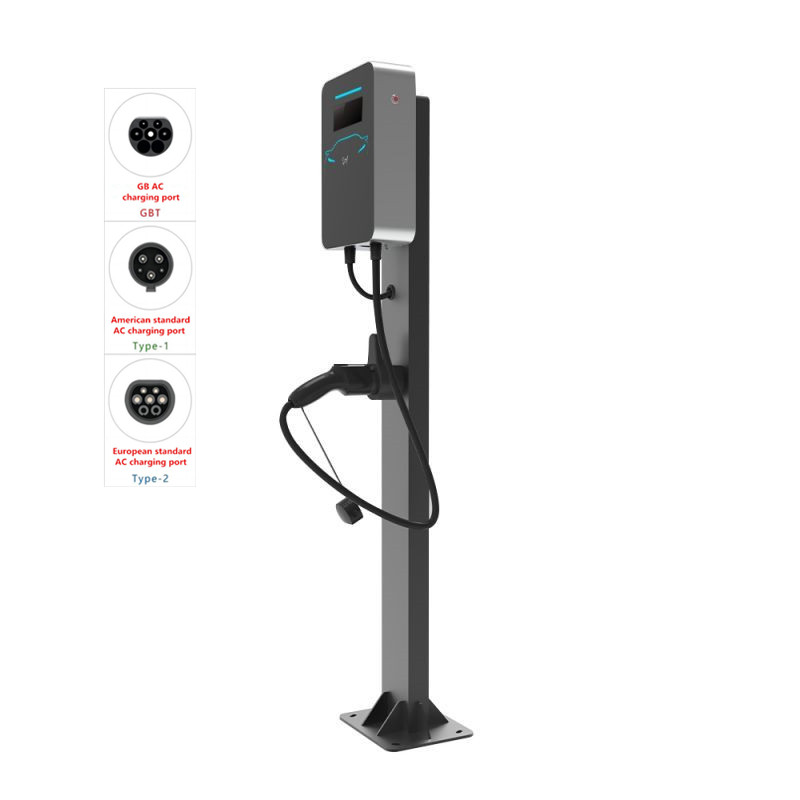

IP65 Yuedong Series Banjin Multifunctional 11kw Charging Socket Type Three-Phase AC Charging Pile
Product name : IP65 Yuedong Series Banjin Multifunctional 11kw Charging Socket Type Three-Phase AC Charging Pile
Model No. : 24022802
Price : 359$/set-375$/set
Products Category: > EVs Charging pile
IP65 Yuedong Series Banjin Multifunctional 11kw Charging Socket Type Three-Phase AC Charging Pile
Input voltage | The output voltage | Installation method | Communication Interface | Protective function |
AC400V±15% | AC400V±15% | Wall-mounted /Column type | Wifi/Bluetooth /Ethernet/4G | Over temperature, leakage, over voltage, etc. |
Conveying form | Protection level | Operating temperature | Altitude | Product color |
three-phase alternating current | IP65 | -30℃~+55℃ | ≤2000m | elegant black |

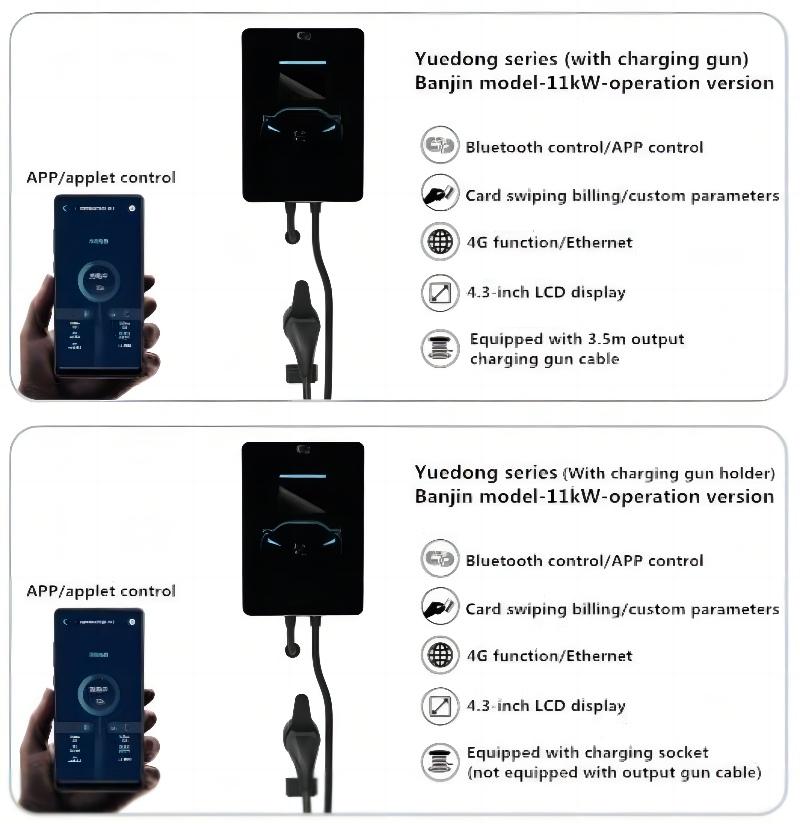

Function Description | 11kW-charging gunVersion | 22kW-charging gunVersion | 11kW-charging socketVersion | 22kW-charging socketVersion |
rated power/Output current | 11kW/16A | 22kW/32A | 11kW/16A | 22kW/32A |
Product Size | 355*250*93mm | 355*250*93mm | 355*250*93mm | 355*250*93mm |
Start mode | Swipe card/Scan QR code for billing | Swipe card/Scan QR code for billing | Swipe card/Scan QR code for billing | Swipe card/Scan QR code for billing |
Bluetooth/APP | Bluetooth enabled/APPcontrol | Bluetooth enabled/APPcontrol | Bluetooth enabled/APPcontrol | Bluetooth enabled/APPcontrol |
communication method | 4G+Ethernet | 4G+Ethernet | 4G+Ethernet | 4G+Ethernet |
Display | 4.3s | 4.3s | 4.3s | 4.3s |
Leakage Protection | Atype/BType leakage protection | Atype/BType leakage protection | Atype/BType leakage protection | Atype/BType leakage protection |
Gun mount configuration | 3.5mOutput gun line | 3.5mOutput gun line | Charging gun holder | Charging gun holder |
Advantages:

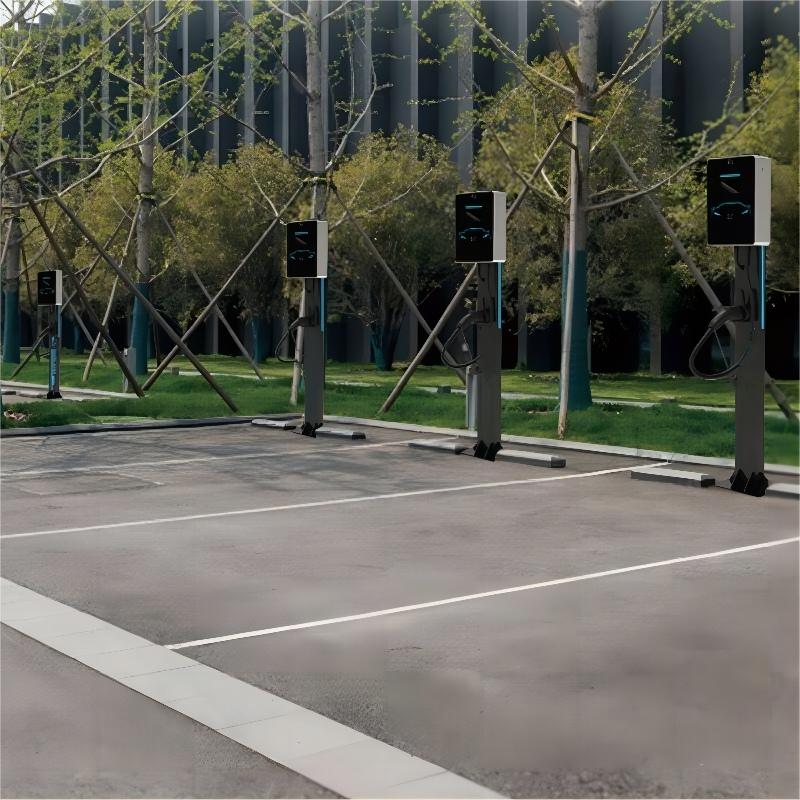

Yuedong series-Banjin three-phase AC charging pile is suitable for commercial scenarios such as urban communities, indoor and outdoor parking lots, road parking spaces, and highway service areas.
This product adopts a sheet metal structure, which has the characteristics of high strength, high temperature resistance, and good heat dissipation. It also has fire prevention, flame retardant, insulation and other properties to ensure user safety. The control panel has a built-in smart chip for safe and stable charging.
Pay attention to the health of new energy vehicle batteries. It has complete communication interfaces and is equipped with intelligent networking to support OCPP, 4G, Ethernet, etc. It can realize scheduled charging, self-adjusting parameters, self-setting rates, etc., and is suitable for home and commercial use.

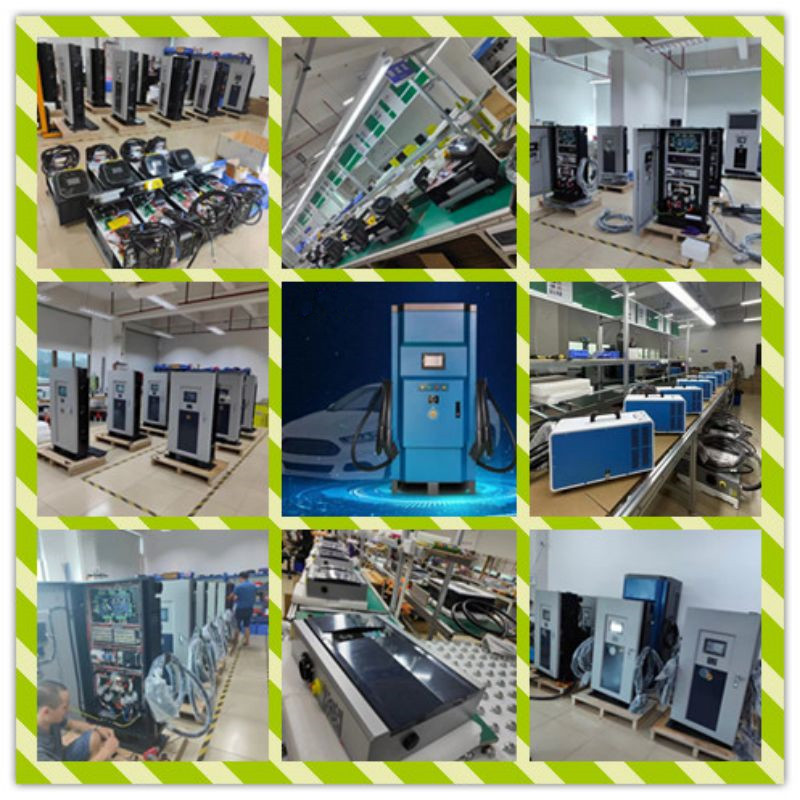

Our charging piles support customization

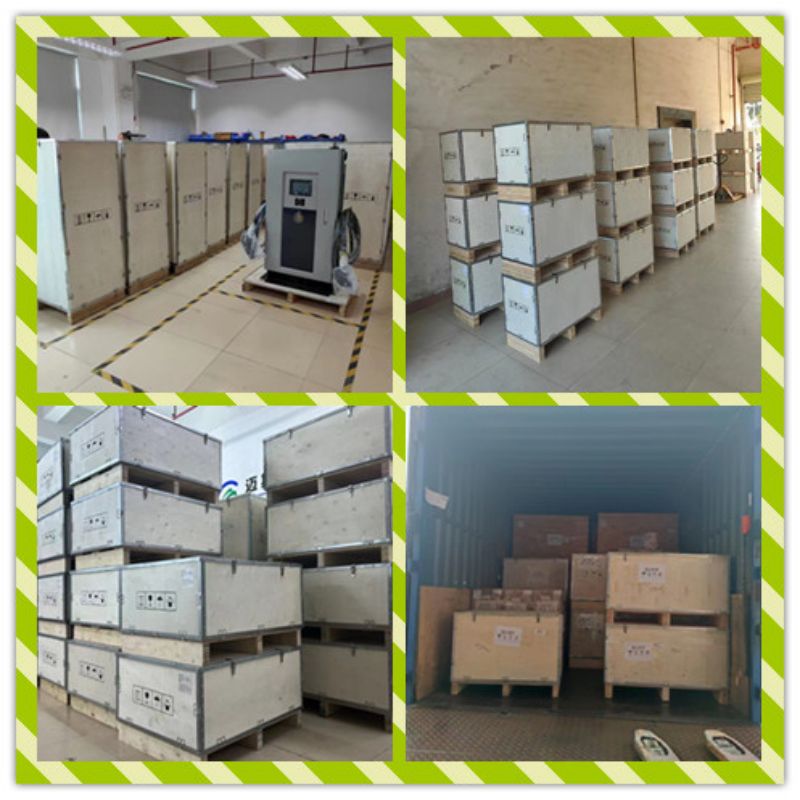

Standard export packaging display

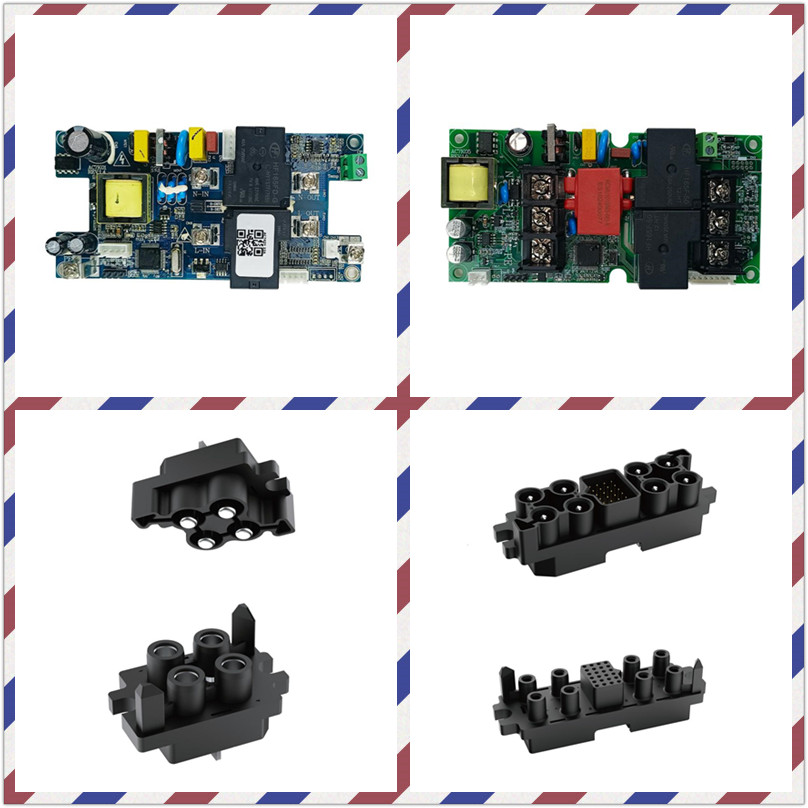

Display of some accessories
FAQ
A. How to place an order.
1. Contact customer service to confirm details such as freight and product model,Configuration, quantity, etc. (you can also arrange freight forwarding by yourself).
2. We provide you with a Proforma Invoice with all product details based on your final decision.
3. Usually you need to arrange 30% payment to our bank account, then we will prepare the products.The cycle is generally about 10-15 days, and the specific delivery can be determined according to your order quantity.
4. After the product is completed, pay the balance, and we will arrange the freight forwarder to deliver the goods (or we will provide relevant information and arrange the freight forwarder transportation by ourselves).
5. After completing this process, the customer service will track the location of the product and notify you when it is approaching and arriving, so that you can quickly prepare for customs clearance and other related matters.
6. After receiving the item, there will be a dedicated after-sales team waiting for your follow-up feedback.
B. Why choose us?
1. We can provide consistent, high-quality products.
2. We can provide high-quality and fast customer service If you have any other questions, please feel free to contact us.
3. Our competitive and reliable product prices.
C. What is your minimum order quantity?
1 unit, however, we offer better discounts for large orders.
