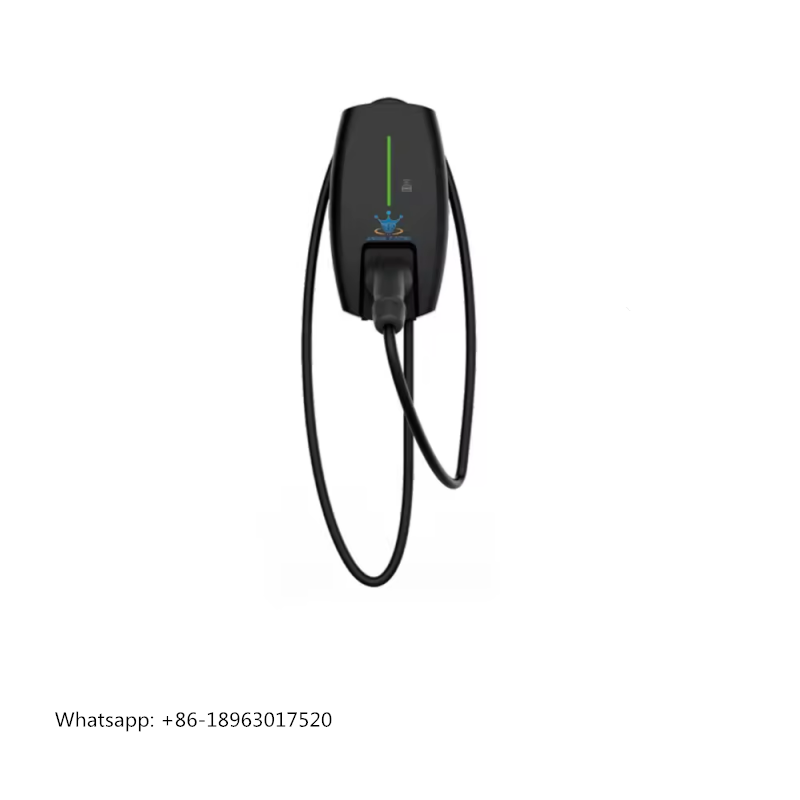

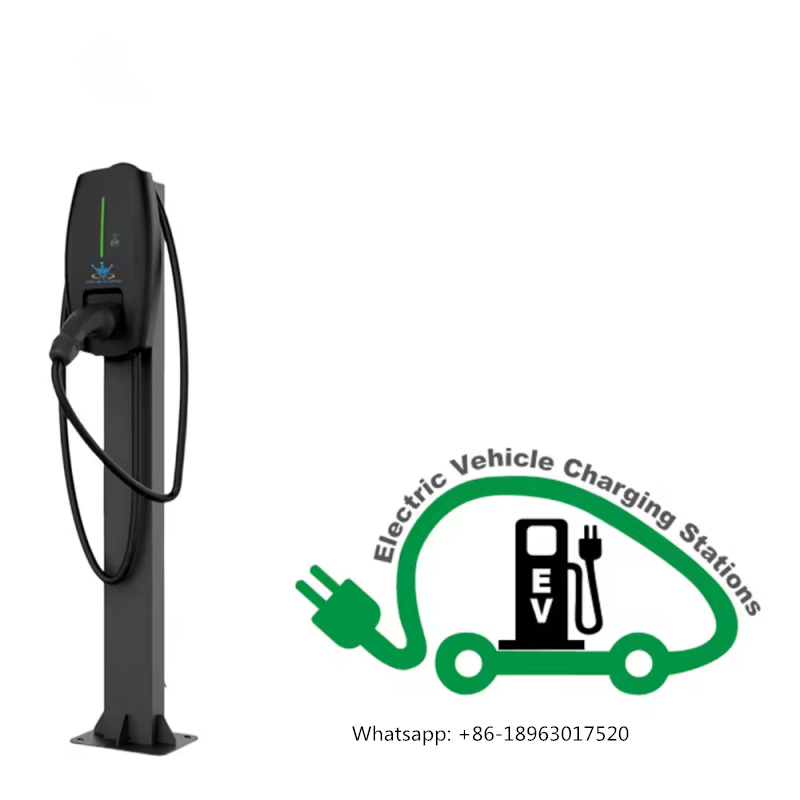

7kw/11kw/22kw AC charging station with type 2 plug electric vehicle charging pile
Product name : 7kw/11kw/22kw AC charging station with type 2 plug electric vehicle charging pile
Model No. : CDZ24041504-M
Price : 175$/set-260$/set
Products Category: > EVs Charging pile
7kw/11kw/22kw AC charging station with type 2 plug electric vehicle charging pile
Datasheet | Model | AC7000-AE-25 | ACO11K-AE-25 |
Input | Power Supply | 1P+N+PE | 3P+N+PE |
Rated Voltage | 230V AC | 400V AC | |
Rated Current | 32A | 16A | |
Frequency | 50/60Hz | 50/60Hz | |
Output | Output Voltage | 230V AC | 400V AC |
Maximum Current | 32A | 16A | |
Rated Power | 7kW | 11kW | |
User Interface | Charge Connector | Type 2 cable | |
Cable Length | 4m | ||
Enclosure | Plastic PC940 | ||
LED Indicator | Green/Yellow/Red | ||
RFID Reader | Mifare ISO/IEC 14443 A | ||
Start Mode | Plug&Play/RFID card/App | ||
Emergency Stop | No | ||
Communication | WiFi | Yes | |
Bluetooth | No | ||
OCPP | OCPP 1.6 Json (OCPP 2.0 upgradable) | ||
Safety | Energy Meter | No | |
ROD | 6mA DC | ||
Ingress Protection | IP65 | ||
Impact Protection | IK10 | ||
Electrical Protection | Over current protection, Residual current protection,Surge protection, Over/Under voltage protection, Over/Under frequency | ||
protection,Over temperature protection | |||
Certification | CE/CB/UKCA/EN303546 | ||
Certification Standard | ENIEC 61851-1:2019, IC 61851-1:2017. IC 61851-21-2:2018 2 years | ||
Warranty | 1 year | ||

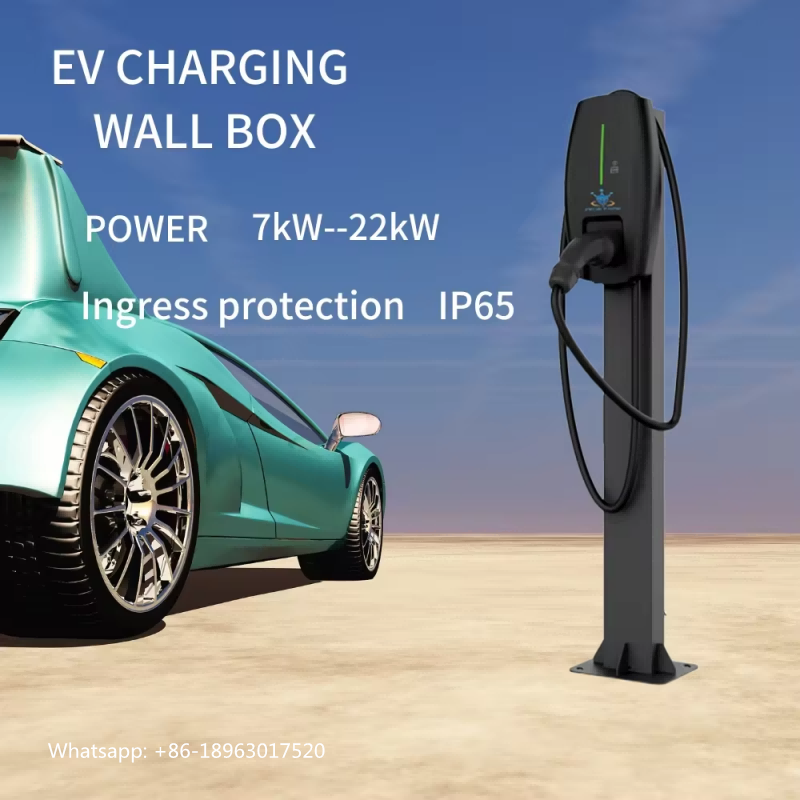

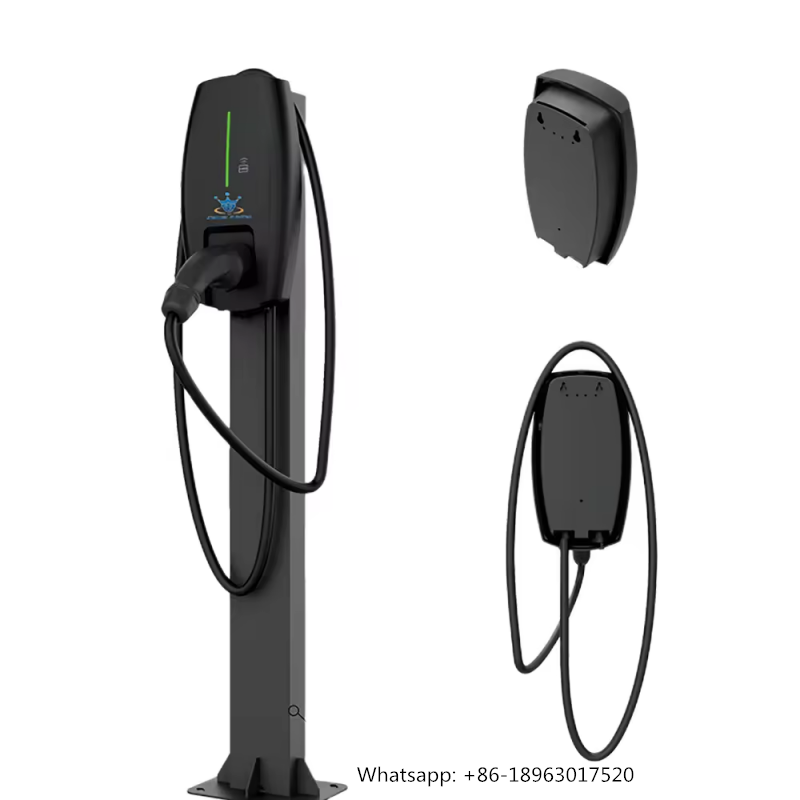

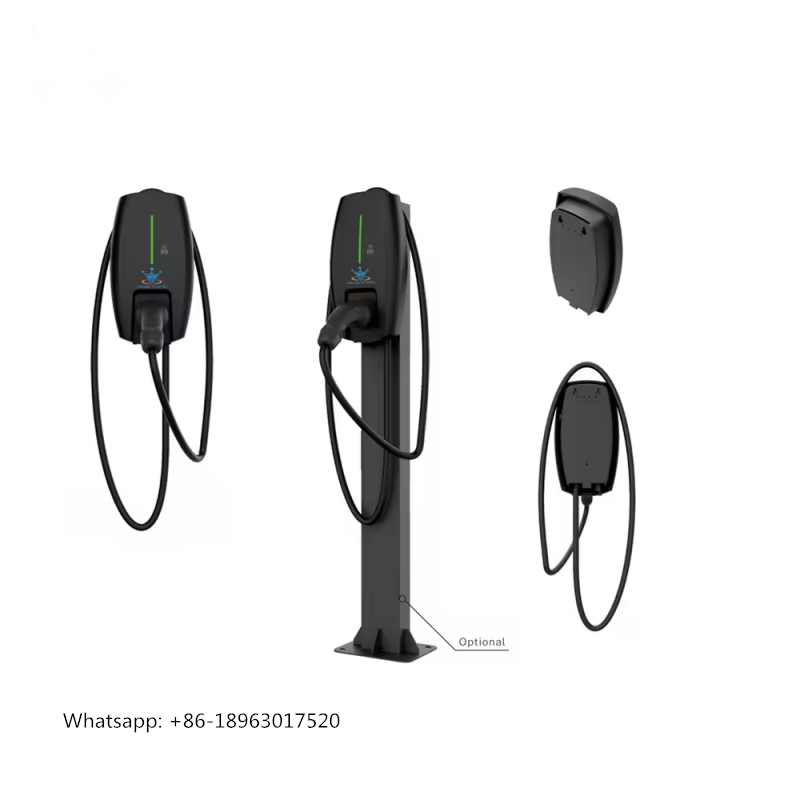

Environment | Installation | Wall-mount/Pole-mount (Optional) | |
Work Temperature | 30℃-+50℃ | ||
Work Humidity | 5%-95% | ||
Work Altitude | <2000m | ||
Package | Product Dimension | 325*181*87 mm (H*W*D) | |
Package Dimension | 430*290*200 mm (L*W*H) | ||
Net Weight | 3.2kg | ||
Gross Weight | 4.0kg | ||
External Package | Carton |
Advantage:
Intelligent

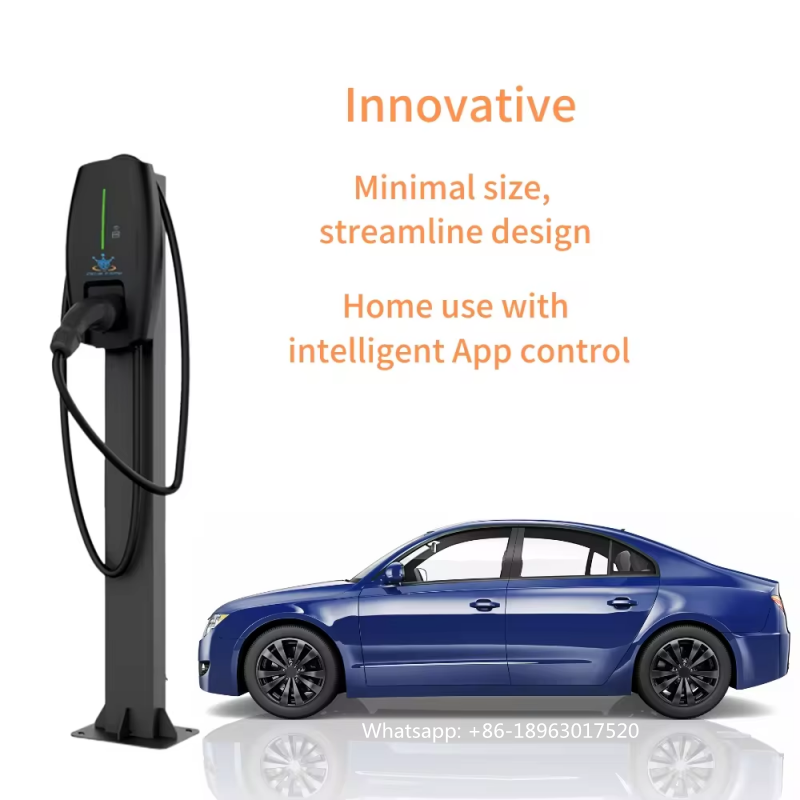

Innovative
Flexible
Secure and Safe
Support WiFi/Ethernet/3G/4G
Fashion design,Secure and Safe,Simple Operation,Safe and durable.
1.Professional heat dissipation design.
2.Waterproof and dustproof dual protection.
3.Strict testing process to ensure quality.
4.Intelligent control of charging process.

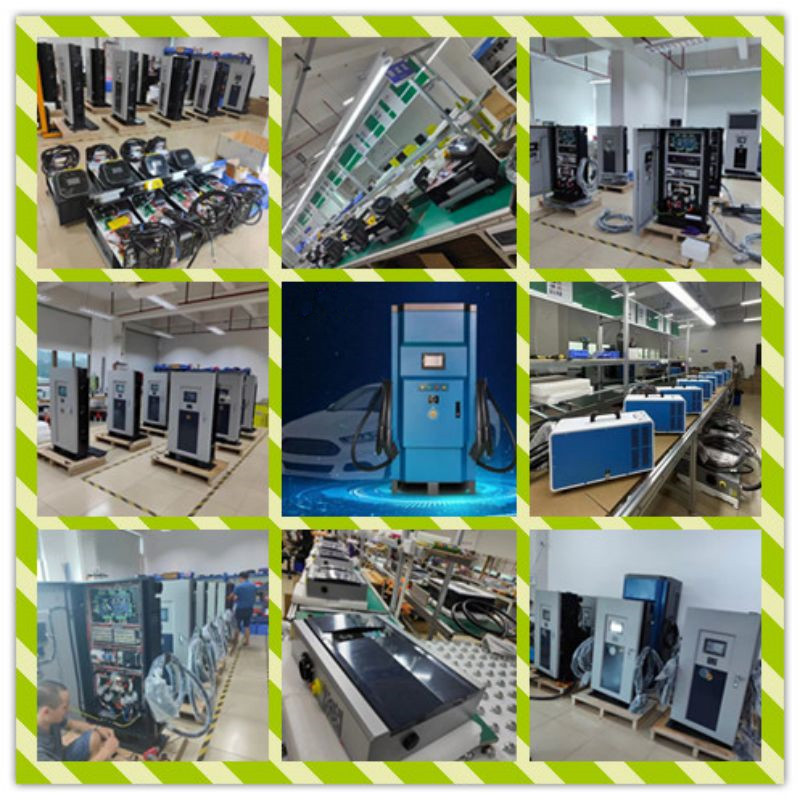

Our charging piles support customization

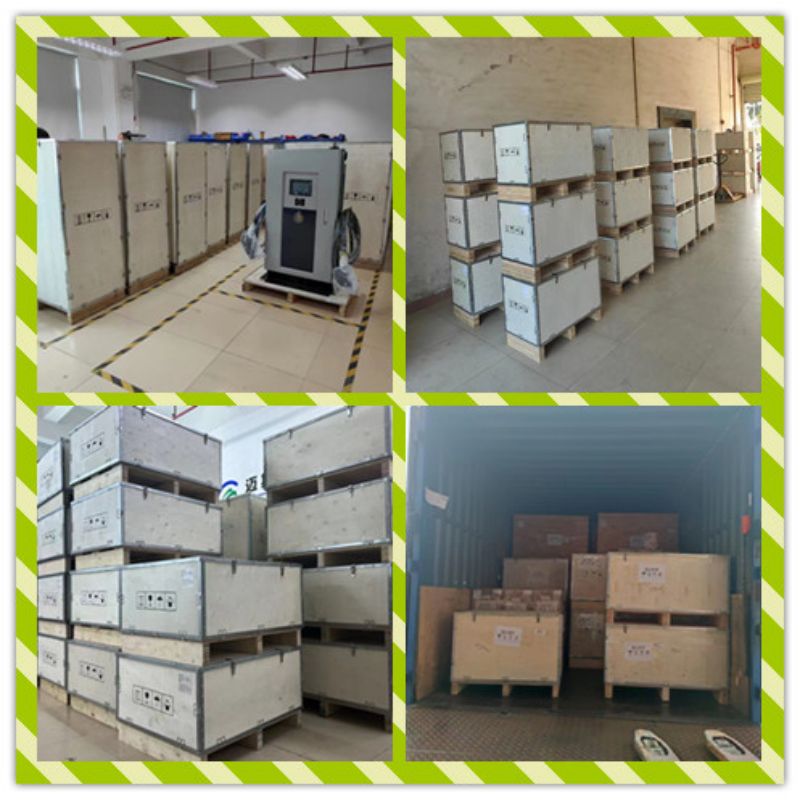

Standard export packaging display
Company Profile
Shandong E-Valley Intelligent Manufacturing Co., Ltd. is located opposite the south gate of Xiangkai Logistics Park, Xiajin County Economic Development Zone, Dezhou City, Shandong Province. It is a subsidiary of Shandong Xutong Group, which is a company integrating logistics, transportation, gas stations, and automobiles. A full-service enterprise that integrates repair shops, logistics parks, supermarkets, motor vehicle testing, motor vehicle driver training, automobile sales and other industries, Xutong Group is a sincere, pragmatic and innovative service that "emphasis on quality, integrity and the most assured".
E-Valley is an Internet of Things high-tech enterprise integrating R&D, production and marketing of smart charging piles. It deeply integrates traditional charging piles with key technologies such as electronic automation, big data, cloud computing, blockchain, and 5G. Establish a Shandong digital energy supply chain cloud platform to provide customers with industry-leading one-stop solutions for intelligent charging systems, and provide government agencies with big data access and cloud platform development services. E-Valley will continue to explore the innovative integration of digital technology and energy technology, deeply explore user needs, and establish a comprehensive service platform for new energy industry commerce, finance, insurance, etc., to assist the digital upgrading and development of the industry.
FAQ
A. How to place an order.
1. Contact customer service to confirm details such as freight and product model,Configuration, quantity, etc. (you can also arrange freight forwarding by yourself).
2. We provide you with a Proforma Invoice with all product details based on your final decision.
3. Usually you need to arrange 30% payment to our bank account, then we will prepare the products.The cycle is generally about 10-15 days, and the specific delivery can be determined according to your order quantity.
4. After the product is completed, pay the balance, and we will arrange the freight forwarder to deliver the goods (or we will provide relevant information and arrange the freight forwarder transportation by ourselves).
5. After completing this process, the customer service will track the location of the product and notify you when it is approaching and arriving, so that you can quickly prepare for customs clearance and other related matters.
6. After receiving the item, there will be a dedicated after-sales team waiting for your follow-up feedback.
B. Why choose us?
1. We can provide consistent, high-quality products.
2. We can provide high-quality and fast customer service If you have any other questions, please feel free to contact us.
3. Our competitive and reliable product prices.
C. What is your minimum order quantity?
1 unit, however, we offer better discounts for large orders.
